Allen & Heath · Xone Compact · Introduced 2014
Xone:23
Allen & Heath Xone:23
The Xone:23 is Allen & Heath’s compact two-channel analogue mixer, launched in 2014 as the entry-level replacement for the ageing Xone:22. Each channel takes a phono/line pair and a line pair with separate input level controls, so up to four stereo sources can feed the mix, and each channel has a three-band EQ with total kill. Instead of a filter per channel there is one analogue Xone:VCF filter, switchable between high-pass and low-pass with frequency and resonance controls, which you assign to either or both channels. The faders are VCA types and the crossfader has a smooth or sharp curve switch; DJWORX found it can take a custom mini Innofader sold by Allen & Heath. There is an XLR mic input with two-band EQ, a balanced XLR master output, RCA booth and record outputs, an external effects loop and both 6.35 mm and 3.5 mm headphone sockets, but the power supply is an external unit. The Xone:23C version added a built-in USB sound card. Allen & Heath’s current range lists the Xone:24 and Xone:24C instead. It suits home and small-bar DJs who want the Xone filter and sound without a club-size mixer.
Xone:23C (adds a built-in USB sound card)
Typical eBay ask$525–$775
Spec at a glance
SPEC- Brand
- Allen & Heath
- Model
- Xone:23
- Family
- Xone Compact
- Type
- Mixer
- Use case
- Bedroom / streaming
- Era
- 2010s
- Years produced
- Introduced 2014
- Typical eBay ask (Oct 3, 2026)
- $525–$775 used
- Confirm the external power supply is included, since the mixer will not run without it.
- Sweep the filter in both high-pass and low-pass modes with resonance up and listen for scratchy pots or dropouts.
- Test the three EQ bands and kills on both channels with music playing.
- Turn each of the four input level controls and check every input passes audio, including the phono inputs with a turntable connected.
- Move both channel faders and the crossfader end to end and listen for crackle or dead spots.
- Try both crossfader curve settings.
- Ask whether an Innofader has been fitted or the internal phono-to-line modification has been made, because both involve opening the case.
- Make sure the unit is a Xone:23 and not a Xone:23C or Xone:24, which have different features.
Buying guide
OCT 3, 2026Which one to buy · from Oct 3, 2026 listings
38 Xone:23s are listed, one for parts, and most complete ones ask $525–775 delivered, though this snapshot caught only six listings, so treat the band as a rough guide. The mixer runs on an external power supply, so confirm it's included, and ask for a video of the filter swept in both high-pass and low-pass with resonance up, both channels' EQ kills, and every input played, including phono with a turntable. The best buys are about $455 with Best Offer and about $530 with a Road Ready case, while the only unit titled as tested, with box and adapter, costs about $889. Avoid the two listings that share the same photo and title from different sellers.
- Listed now
- 38
- For parts
- 1
- Typical ask
- $525–$775
- Full range
- $250–$739
★ CHEAPEST$455.00est. deliveredAbout $455 delivered with Best Offer from a 100% seller, about $70 under the band. The title is cut off at 'with Polycarb', so ask what that is, and confirm the external power supply is included, since the mixer won't run without it.

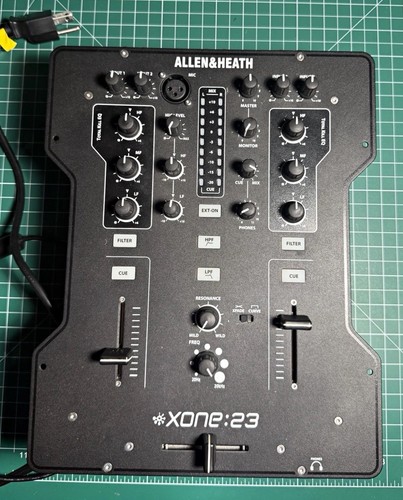

Allen & Heath Xone:23 XONE:23 2-Channel Analog DJ Mixer with Polycarb
View on eBay ↗$455.00 est. delivered
★ BEST VALUE$530.10est. deliveredAbout $530 delivered with Best Offer from a 99.9% seller, at the bottom of the band, and it comes with a Road Ready case per the title. Confirm the power supply is in the box and ask for a filter and fader video.
Allen & Heath XONE:23 2+2 DJ Mixer 2 Channel & Custom Road Ready RR12M
View on eBay ↗$530.10 est. delivered
★ EASIEST TO GET WORKING$888.50est. deliveredThe only unit here titled as tested, and it lists the box, adapter and guide, so it should be ready to plug in. At about $889 delivered it's about $115 over the band, with $150 of that in shipping; check the adapter's rated voltage matches your mains.
Allen & Heath Xone 23 2+2 Channel DJ Mixer w/ Box Adapter Guide Tested
View on eBay ↗$888.50 est. delivered
★ PROJECT PIECE$291.21est. deliveredSold for parts though it powers on, about $291 delivered with Best Offer from a 100% seller, roughly $235 under the band floor. Ask exactly what doesn't work and whether the power supply comes with it before you offer.
Allen & Heath Xone:23 2-Channel DJ Mixer FOR PARTS POWERS ON
View on eBay ↗$291.21 est. delivered
Delivered prices include shipping as eBay quoted it to a US address on Oct 3, 2026. Many sellers charge by distance, so your total may differ; eBay shows your exact total before you buy.
Live on eBay right now
6 OF 38 LISTEDSnapshot captured · listings may have ended
Delivered prices include shipping as eBay quoted it to a US address on Oct 3, 2026. Many sellers charge by distance, so your total may differ; eBay shows your exact total before you buy.
- Used
- Cheapest
Allen & Heath Xone:23 XONE:23 2-Channel Analog DJ Mixer with Polycarb
$455.00 est. delivered
$440.00 + $15.00 shipping
Buy It Now$440.00
Offers accepted
This seller takes offers, and sellers often accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Good buy
The lowest working ask at about $455 delivered from a 100% seller; the title doesn't mention the power supply, so ask.
Seller: thedrifter0506
100% positive
- Used
- Best value
Allen & Heath XONE:23 2+2 DJ Mixer 2 Channel & Custom Road Ready RR12M
$530.10 est. delivered
$465.10 + $65.00 shipping
Buy It Now$465.10
Offers accepted
This seller takes offers, and sellers often accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Good buy
With a Road Ready case per the title, about $530 delivered with Best Offer from a 99.9% seller, low in the band.
Seller: metalchillz1313
99.9% positive
- Used
- Easiest to get working
Allen & Heath Xone 23 2+2 Channel DJ Mixer w/ Box Adapter Guide Tested
$888.50 est. delivered
$739.00 + $149.50 shipping
Buy It Now$739.00
Good buy
Tested and complete with box, adapter and guide per the title, about $889 delivered from a 99.6% seller; you pay about $115 over the band for that.
Seller: fareastsonus
99.6% positive
- For parts
- Project piece
Allen & Heath Xone:23 2-Channel DJ Mixer FOR PARTS POWERS ON
$291.21 est. delivered
$250.00 + $41.21 shipping
Buy It Now$250.00
Offers accepted
This seller takes offers, and sellers often accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Project piece
For parts but powers on, about $291 delivered; only worth it if the seller can say what fails.
Seller: medaliarecords
100% positive
Used- Check the seller
Allen & Heath XONE:23 Professional 2+2 Channel DJ Mixer Analog w/ Box
$723.96 est. delivered
$623.98 + $99.98 shipping
Buy It Now$623.98
Heads-up: check the seller
About $724 delivered from a 99.3% seller, but another seller uses the same photo and title; ask for a photo of this unit with a dated note before buying.
Seller: sage_records
99.3% positive
- Used
- Check the seller
Allen & Heath XONE:23 Professional 2+2 Channel DJ Mixer Analog w/ Box
$765.60 est. delivered
$705.60 + $60.00 shipping
Buy It Now$705.60
Heads-up: check the seller
The same photo and title as the sage_records listing, about $766 delivered from a 97.6% seller; skip it unless the seller can show this exact unit.
Seller: yoshyama13
97.6% positive
Prices and availability change daily. The full, current search on eBay shows every matching listing, including new ones since Oct 3, 2026.
See all current listings on eBay ↗eBay search
ⓘ PLAIN LINKSLinks to eBay and Amazon go straight to the listing or search, with no affiliate tracking. We earn nothing from them. Picks are never paid placements. On-site links are cyan; links that leave the site are blue.
After you buy
Cables and a case
Check what comes with a used Xone:23: power cable, USB cable if it has a sound card, and a decksaver or case if it travels. Contact cleaner helps with noisy pots; worn faders are a parts job.
Search accessories on Amazon ↗Amazon search
